NEC NL160120AM27-13A Summary
The NL160120AM27-13A is a 21.3 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter . It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -20 ~ 60°C .
NEC NL160120AM27-13A Application Details
| Basic Detail : | Manufacturer | | Model Name | NL160120AM27-13A |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - |
| Panel Size | 21.3 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 55 °C | ST Temperature | -20 ~ 60 °C |
NEC NL160120AM27-13A Optical Details
| Basic Information : | Luminance | 1650 cd/m² (Typ.) | Contrast Ratio | 850 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SA-SFT, Normally Black, Transmissive |
| Color Performance : | Chromaticity | - | Support Color | Grayscale (8-bit) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
NEC NL160120AM27-13A Mechanical Details
| Pixel Features : | Number of Pixel | 1600(LCR)×1200 [UXGA] | Arrangement | LCR Vertical Stripe |
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] |
| Physical Size : | Active Viewing | 432(W)×324(H) mm | Overall Dim. | 457(W)×350(H) mm |
| Bezel Opening | - | Overall Depth | 37 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Other Detail : | Mass | 2.90Kgs (Typ.) | Surface | Antiglare |
NEC NL160120AM27-13A Interface Details
| Signal Electrical : | Input Current | - | Input Voltage | 12.0V (Typ.) |
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) |
NEC NL160120AM27-13A Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Direct light type |
| Exchange | - | Amount | 16 pcs | Life | - |
| Backlight Driver : | With Inverter |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

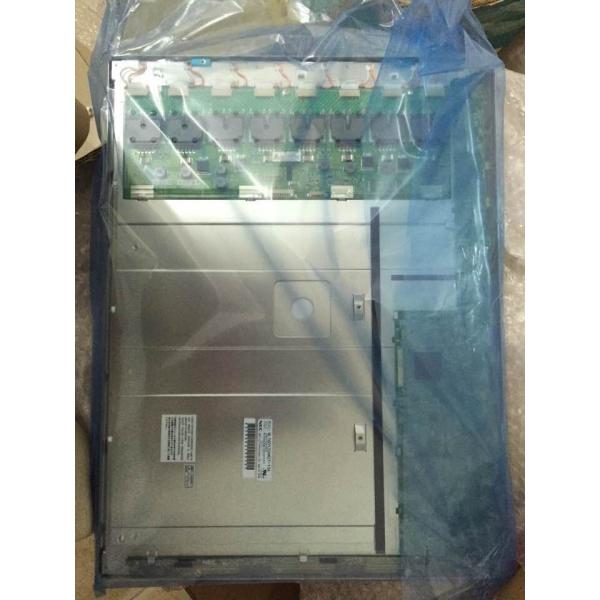

NL160120AM27-13A NLT 21.3INCH 1650CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Operating Temperature: 0 ~ 55 °C INDUSTRIAL Images
|
